Introducing the Spiral Jet Mill from Changzhou General Equipment Technology Co., Ltd., the premier supplier and manufacturer of jet mills. Our horizontal oriented jet mill with tangential grinding nozzles offers superior grinding efficiency for various industries. The Spiral Jet Mill features tangential grinding nozzles located around the peripheral wall of the grinding chamber, allowing for materials to be speeded up through a venturi nozzle by a high-speed fluid discharged by a pusher nozzle. This unique design ensures materials are crashed and milled effectively, resulting in fine powders with averages as low as 2~45 microns. Our Spiral Jet Mill is capable of grinding dry powders with ease, and after centrifugal force classifies powders, fine powders are discharged from the outlet while coarse powders are repeatedly milled in the milling zone. The inner liner of the jet mill can be selected from materials such as Al2O3, ZrO2, Si3N4, SiC, and more. Changzhou General Equipment Technology Co., Ltd. takes pride in offering laboratory to production models of the Spiral Jet Mill with improved grinding efficiency and low noise levels (less than 80 dB). The replaceable grinding nozzles and liners, as well as sanitary designs for access to gas and product contact areas, make maintenance and cleaning a breeze. With specialized liners available for abrasive or sticky materials, our Spiral Jet Mill finds applications in various industries including pharmaceutical, aerospace, cosmetic pigment, chemical, food processing, nutraceutical, plastic, paint, ceramic, electronics, and power generation. Choose Changzhou General Equipment Technology Co., Ltd. as your trusted supplier and manufacturer of Spiral Jet Mill for unparalleled quality and efficiency in jet milling technology.

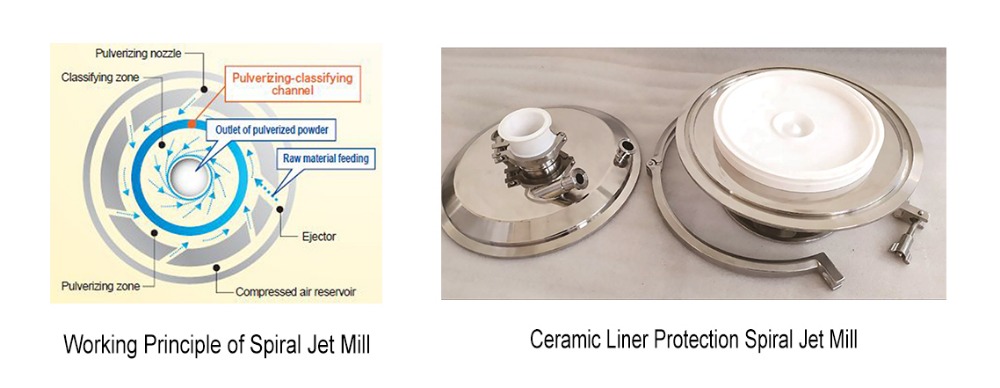

Spiral jet mill is a horizontal oriented jet mill with tangential grinding nozzles located around the peripheral wall of the grinding chamber. Materials are speeded up through venturi nozzle by a high-speed fluid discharged by pusher nozzle and enter into a milling zone. In the milling zone materials are crashed and milled each other by the high-speed fluid discharged from grinding nozzle. Grinding and static classification both occur with a single, cylindrical chamber.

Brief Introduction：

Spiral jet mill is a horizontal oriented jet mill with tangential grinding nozzles located around the peripheral wall of the grinding chamber. Materials are speeded up through venturi nozzle by a high-speed fluid discharged by pusher nozzle and enter into a milling zone. In the milling zone materials are crashed and milled each other by the high-speed fluid discharged from grinding nozzle. Grinding and static classification both occur with a single, cylindrical chamber.



Capable of grinding dry powders to 2~45 micron averages. After centrifugal force classify powders, fine powders are discharged from outlet and coarse powders are repeatedly milled in the milling zone.



Material of the inner liner can be selected from Al2O3, ZrO2, Si3N4, SiC etc. Simple inner structure makes disassemble, cleaning and washing easy.



Features:

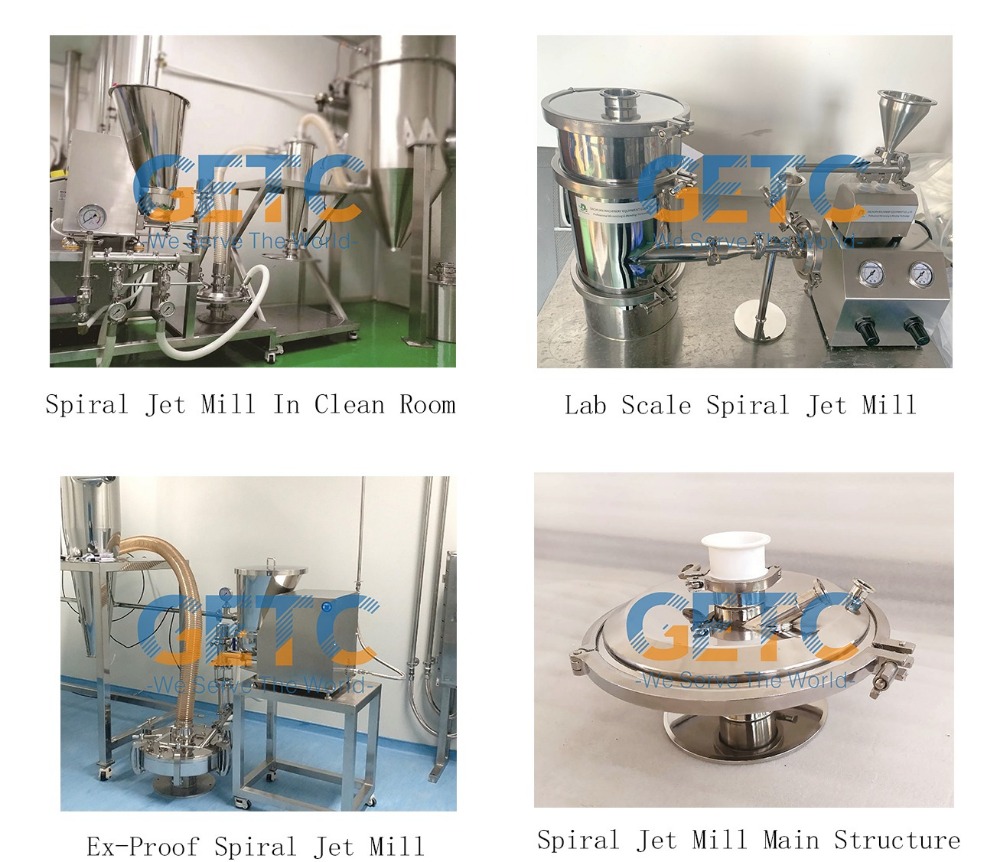

Laboratory up to Production ModelsImproved Grinding EfficiencyLow noise (less than 80 dB)Replaceable grinding nozzles and linersSanitary designs for access to gas and product contact areasSimple design ensures rapid disassembly for easy cleaning and ChangeoverSpecialized liners for abrasive or sticky materials



Applications:

PharmaceuticalAerospaceCosmetic  Pigment   Chemical   Food Processing  Nutraceutical  PlasticPaint  Ceramic  Electronics   Power Generation







At GETC, we pride ourselves on offering top-of-the-line air classifier machines that deliver unparalleled efficiency and reliability. Our spiral jet mill is designed with tangential grinding nozzles strategically placed around the chamber to create a horizontal orientation for maximum effectiveness. Whether you need precise particle size reduction or fine powder processing, our machines are capable of handling even the most demanding tasks with ease. With a focus on innovation and quality, GETC continues to set the standard for air classifier machines in the industry. Our commitment to excellence is reflected in every aspect of our products, from their durable construction to their advanced features. Trust GETC to provide you with the best spiral jet mill solution for your specific needs, and experience the difference that superior technology can make in your operations. Choose GETC as your trusted supplier and take your productivity to new heights with our high-efficiency air classifier machines.
