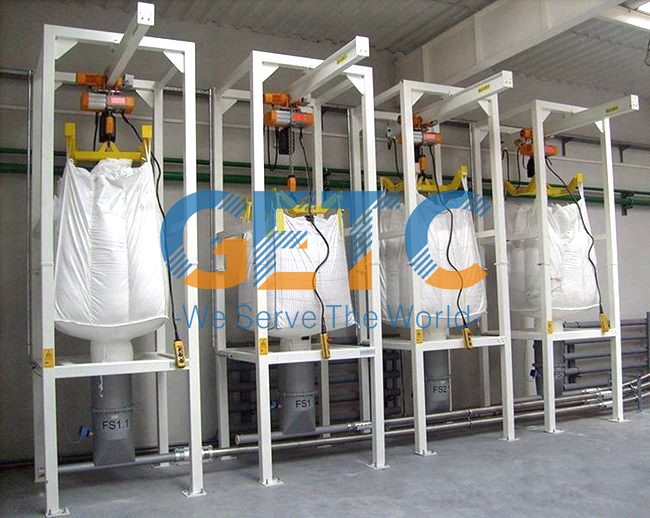

DTL -1 ton package feeding station is specifically for large bags ( i . e . tons of bags ) when the dust spill , dust and other issues and other issues developed and designed feeding , unpacking equipment . Ton bag feeding station through the electric hoist will be the ton bag to the equipment feed port directly above , by artificial fixed ton bag inside the equipment sandwich mouth , through the ton bag bag for the ton bag bag seal to prevent dust spillage , and then through artificial for the ton bag unpack discharge material , and supplemented by beater , vibration device and other auxiliary facilities more conducive to the material in the ton bag to complete the unloading work . For the next process equipment direct feeding or for the gas transport , spiral transport and other conveyor systems for unpacking and feeding work .
Feature：
The DTL -2 feed station is based on the DTL -1 ton package feeding station based on the addition of small bags of packaging materials feeding function . Suitable for pharmaceutical , chemical , food , battery materials and other industries , small bags of materials and tons of bag packaging materials unpacking , delivery , sieve and discharge materials . Tons of bag unpacking is equivalent to the DTL -1 function , small bags unpacking due to the role of dust collection fan , can avoid material dust flying everywhere . When the material unpacks and pours into the next process , only manual direct unpacking is required into the system , and the material can be intercepted by large materials and foreign objects through a vibration sieve ( safety screen ), thus ensuring that the particles that do not meet the requirements are eliminated.
Types of Reactor：
- • The structure of the bag opening station is simple and easy to operate.
• The crusher crushes the agglomerates during the bag opening process to ensure the smooth progress of the next process.
• The magnetic separator can remove foreign objects in the big bag.
• Improve production efficiency and reduce labor intensity.
• Closed bag opening, put an end to dust, improve the working environment, reduce production costs.
• Bag opening, patting, crushing, magnetic separation integrated design, compact structure, easy operation.
• It can be directly connected with glove box, hopper, reactor and other equipment.
• Can provide pneumatic or electric control mode to realize remote monitoring.
• Applicable working conditions: large bags of packaging materials with poor fluidity, easy moisture absorption and agglomerated materials.
• According to different materials to choose different materials such as carbon steel,304 stainless steel, 316 stainless steel, titanium plate, etc.
• According to the diversity of packaging specifications, bag rate and material characteristics, according to customer demand for detailed design.
Application:
Mainly applicable to particles , powdered materials of tons of bag unpacking and unloading materials , such as food raw materials , chemical raw materials , pharmaceutical raw materials , rubber industry , energy batteries , coatings industry.
Specification:
Model | Hoist Power (kw) | Unloading Speed (t/h) | Rotary Valve Power (kw) | Height (m) | Material |
DTL-1 | 3 | 1-4 | 0.75-1.5 | 4-15 | Carbon Steel , SUS 304, SUS 316L |
Detail:
 |  |
 |  |
Looking to streamline your insecticide manufacturing process? Our innovative DTL-2 feed station builds upon the proven success of the DTL-1 ton package feeding station by incorporating small bag packaging materials feeding functionality. With enhanced efficiency and accuracy, our top feeding jet mills are designed to optimize your insecticide production line for maximum productivity and profitability. Trust GETC for cutting-edge solutions in insecticide process plant technology.
