Introducing our Hammer Mill designed for superior crushing performance in pharmaceutical, food, and chemical applications. Manufactured by the renowned Changzhou General Equipment Technology Co., Ltd., this Hammer Mill boasts a very high throughput of up to 1500 kg/h, with a fixed speed of 3000 min-1. The sieve range of 2 – 40 mm and feed size up to 100 mm ensure precise grinding to < 0.8 mm. Easy access to the crushing chamber facilitates cleaning, making it ideal for batchwise or continuous grinding. The connector for dust extraction ensures a clean working environment. The rotor and hammers are easily cleaned, maintaining efficiency and product quality. Choose our Hammer Mill for reliable performance and exceptional results.

ammer mills are widely used for pulverizing sterile APIs, sterile injection grade crystalline products and biological freeze-dried products such as oral solid preparations, intermediates and excipients, various antibiotics, etc. Simple modular design, good crushing effect and discharge rate make it more suitable for pharmaceutical, food and chemical fields.

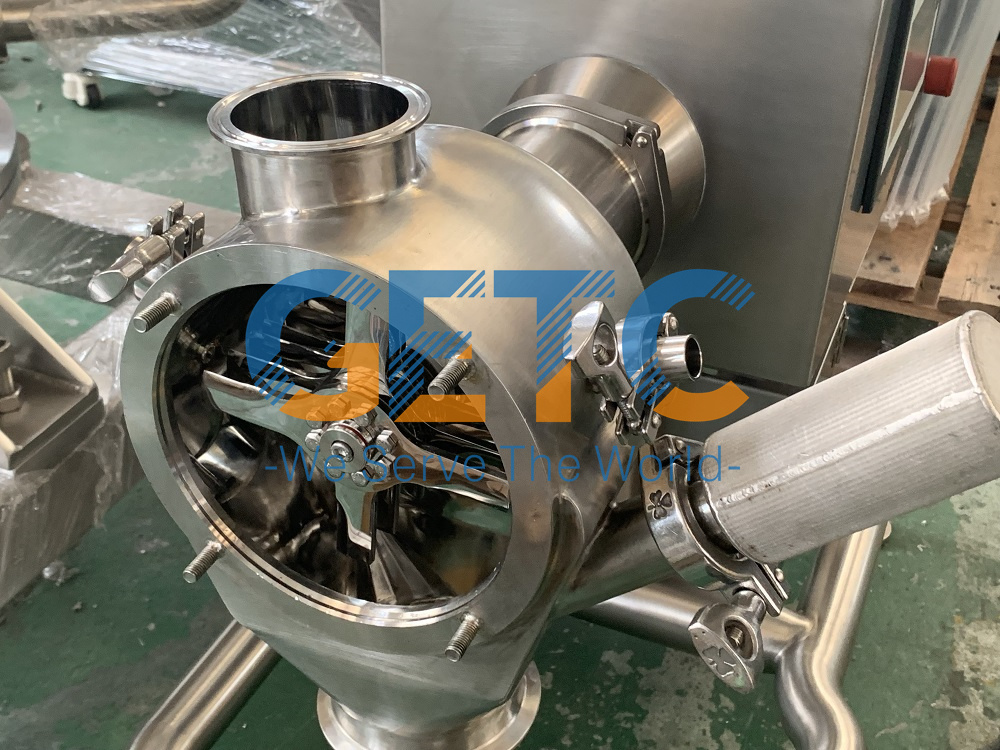

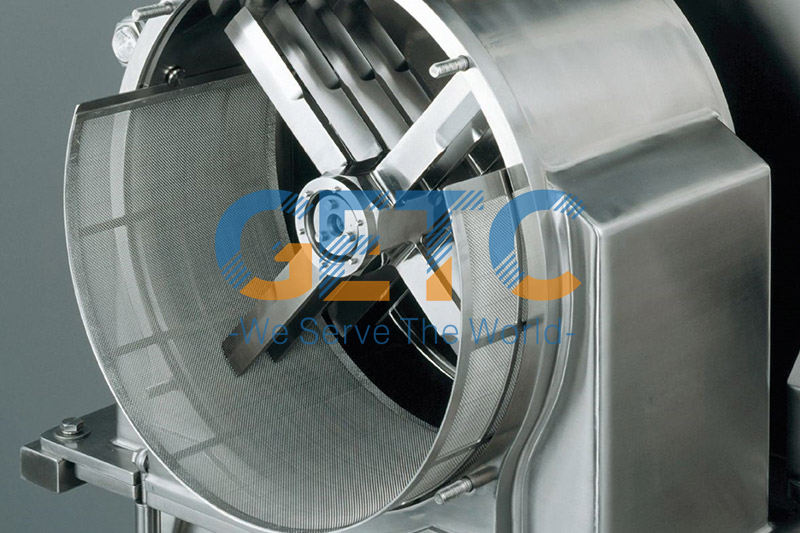

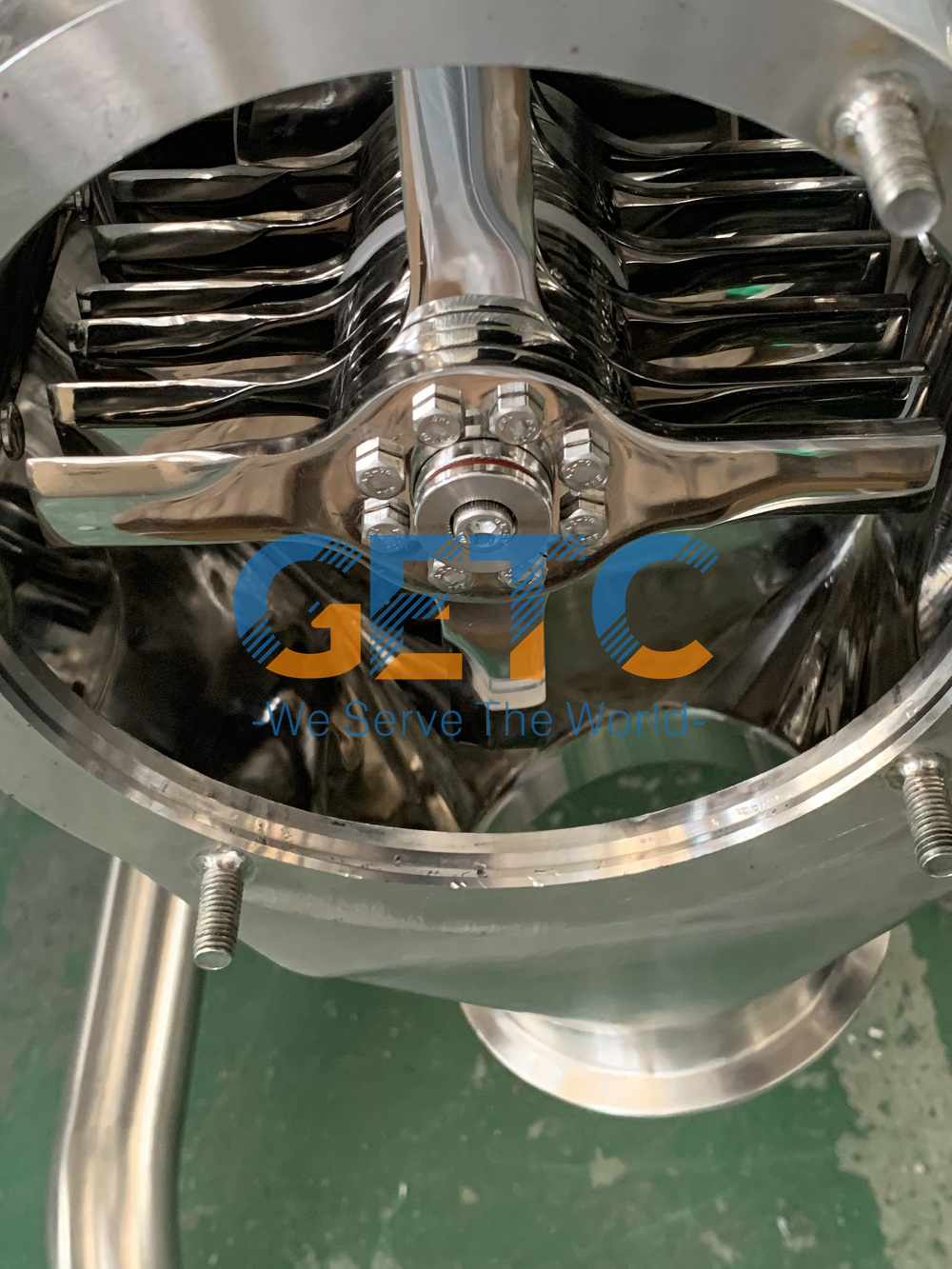

The machine is composed of a screen, a rotor and a feeder. The product goes through the feeding valve which ensures a consistent product flow to the milling chamber. Then the product is impacted by the high speed rotor and then becomes smaller particles which goes down through a screen mounting below the rotor. Customer can adjust the rotor speed and screen size to achieve required particle size distribution.

Features:

---

• Excellent crushing performance.• Very high throughput of up to 1500 kg/h.• Fixed speed of 3000 min-1.• Sieve range from 2 – 40 mm.• Feed size up to 100 mm, grind size < 0.8 mm.• Easy access to crushing chamber facilitates cleaning.• For batchwise or continuous grinding.• Connector for dust extraction.• Easy cleaning of the rotor and the hammers.

Application:

---

Pharmaceutical, Food and Chemical.



SPEC:

---

Type	Output (kg/h)	Voltage	Speed (rpm)	Power (kw)	Weight (kg)
DHM-300	50-1200	380V-50Hz	Max 6000	4.0	250
DHM-400	50-2400	380V-50Hz	Max 4500	7.5	300



Product name	Particle size	Output (kg/h)
Vitamin C	100 mesh/150 um	500
Sugar	100 mesh/150 um	500
Salt	100 mesh/150 um	400
Ketoprofen	100 mesh/150 um	300
Carbamazepine	100 mesh/150 um	300
Metformin hydrochloride	200 mesh/75 um	240
Anhydrous sodium carbonate	200 mesh75 um	400
Cefmenoxime hydrochloride	300 mesh/50 um	200
Amino acid mixture	150 mesh/100 um	350
Cefminox sodium	200 mesh75um	300
Levofloxacin	300 mesh/50 um	250
Sorbitol	80 mesh/200 um	180
Hydrochloric acid to whalen	200 mesh75 um	100
Clozapine	100 mesh/150 um	400
Sorbitol	100 mesh/150 um	300
Cefuroxime sodium	80 mesh/150 um	250
