Introducing our top-of-the-line horizontal ribbon mixer, ball mill mixer, and nauta mixer for sale, designed and manufactured by Changzhou General Equipment Technology Co., Ltd. Our mixers are widely used in pharmaceutical, chemical, metallurgy, food, light industry, agriculture, and other industries for mixing powder or granules evenly to achieve the best results. Our mixers feature a three-dimensional movement mechanism and precision-polished stainless steel mixing cylinder to ensure no centrifugal force, segregation, or stratification of materials. With a mixing rate of over 99.9%, our mixers provide unmatched performance and efficiency. The large charging rate of up to 90% allows for high efficiency and short mixing times. Choose from our range of models including SYH-5, SYH-20, SYH-50, SYH-100, SYH-200, SYH-400, SYH-600, SYH-800, SYH-1000, and SYH-1500, with varying mixing barrel volumes, loading volumes, loading weights, spindle rotation speeds, and motor powers to suit your specific requirements. Trust Changzhou General Equipment Technology Co., Ltd. for high-quality horizontal ribbon mixers, ball mill mixers, and nauta mixers that deliver exceptional performance and reliability in all your mixing applications. Contact us today to learn more about our range of mixers and find the perfect solution for your needs.

1. This three-dimensional mixer is composed of machine base, drive system, three-dimensional motion mechanism, mixing cylinder, frequency conversion speed control motor, feeding outlet outlet, electrical control system, etc., the mixing cylinder in direct contact with the material is made of high-quality stainless steel material, and the inner wall of the cylinder is precision polished.

Introduction：

---

This three-dimensional mixer is composed of machine base, drive system, three-dimensional motion mechanism, mixing cylinder, frequency conversion speed control motor, feeding outlet outlet, electrical control system, etc., the mixing cylinder in direct contact with the material is made of high-quality stainless steel material, and the inner wall of the cylinder is precision polished



Features:

---

• The mixing cylinder of the machine moves in multiple directions, the material has no centrifugal force, no specific gravity segregation and stratification, accumulation phenomenon, each component can have a disparity in weight ratio, the mixing rate is more than 99.9%, is a variety of mixers in an ideal product.
• The cylinder charging rate is large, up to 90% (ordinary mixer is only 40%), high efficiency and short mixing time.


Application:

---

This three-dimensional mixer is a material mixer widely used in pharmaceutical , chemical , metallurgy , food , light industry , agriculture and other industries .

The machine can mix powder or granules very evenly to achieve the best results after mixing .



Specification:

---

Model	SYH-5	SYH-20	SYH-50	SYH-100	SYH-200	SYH-400	SYH-600	SYH-800	SYH-1000	SYH-1500
Mixing Barrel Volume (L)	5	20	50	100	200	400	600	800	1000	1500
Mixing Loading Volume (L)	4	17	40	85	170	340	500	680	850	1270
Mixing Loading Weight (kg)	4	15	40	80	100	200	300	400	500	750
Spindle Rotation Speed (rpm)	3-20	3-20	3-20	3-15	3-15	3-15	3-10	3-10	3-10	3-8
Motor Power (kw)	0.37	0.55	1.1	1.5	2.2	4	5.5	7.5	7.5	711
Machine Weight (kg)	90	100	200	650	900	1350	1550	2500	2650	4500
Dimension(L×W×H) (mm)	900×700×650	900×700×650	900×700×650	900×700×650	900×700×650	900×700×650	900×700×650	900×700×650	900×700×650	900×700×650

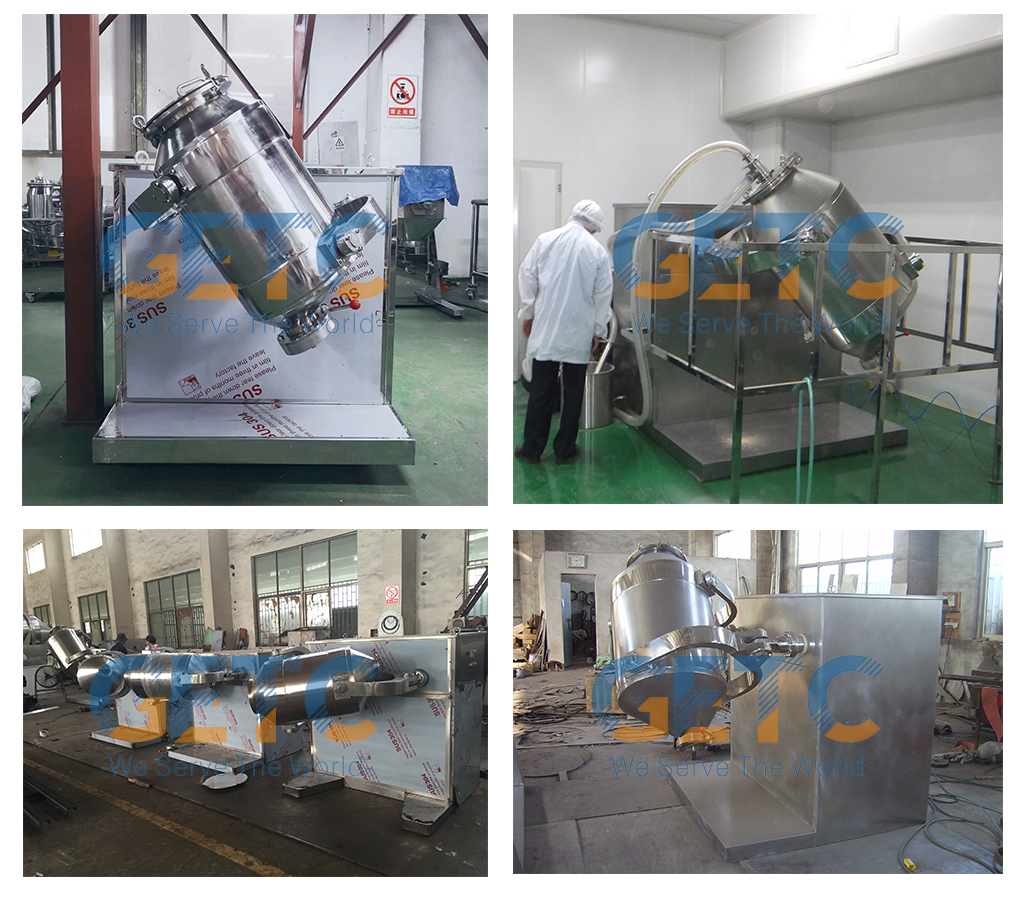

Detail:

---

---
